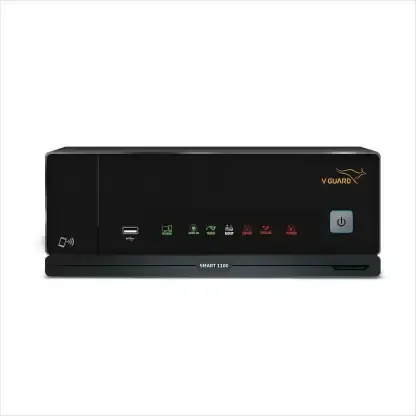

V-Guard SMART 1100 Pure Sine Wave Inverter
V-guard · Inverters
₹7,999best price in stock, at Flipkart
Where to buy
Compare with another product
Side by side with V-Guard SMART 1100 Pure Sine Wave Inverter: prices at every store, and only the specs that differ.
Coupons at stores that sell it
Offers running now at these retailers. They are store-wide, so check the terms — not every offer covers this product.
Compare with similar inverters
vs V-Guard Prime 850 Sine Wave Inverter2 stores · from ₹7,963
vs Exide Star 12V 1375VA Pure Sine Wave Inverter2 stores · from ₹7,957
vs Okaya ATSW 1700 12V Sine Wave UPS2 stores · from ₹7,810
vs Seltrik SK1112N Sine Wave UPS2 stores · from ₹7,754
vs V-Guard 1050 Prime Sine Wave Inverter2 stores · from ₹8,298
vs Luminous NXG 1150 Solar Sine Wave Inverter2 stores · from ₹8,586
Specifications
General
- Type
- Pure Sine Wave Inverter
- Brand
- V-Guard
- Material
- High grade ABS front with CRCA cabinet
- Mode Type
- UPS Mode, Normal mode
- Model Name
- 1200 With Bluetooth Connectivity (Free Installation)
- Switch Type
- Power switch, Battery type selection, Mode selection, Performance selection
- Back Up Time
- 8 hrs
- Fixture Type
- Table top
- Load Options
- 2 LED TVs (55), Set top box, Wi-Fi Router, 4 Fans, 10 LED Bulbs/ CFL, Inverter Refrigerator, Or other heavy load running options (App)
- Model Number
- Smart Pro
- Technology Used
- IoT and Digital Controller with PWM Technology for Pure Sine Wave
- Battery Included
- No
- Solar Power Compatible
- No
Warranty
- Service Type
- On-site warranty
- Warranty Summary
- 2 year domestic warranty by V-Guard
- Covered In Warranty
- Manufacturing defects
Dimensions
- Depth
- 12 cm
- Width
- 27.5 cm
- Height
- 25 cm
- Weight
- 9.5 kg
In The Box
- In The Box
- Smart Pro 1200 Inverter, User Manual and Warranty Card
Input Features
- Input Voltage
- 90 V-295 V
- Input Frequency
- 47-53 Hz in UPS mode; 40-55 Hz in Normal Mode. Generator Compatible
- Low Cut Input Voltage
- 90 V
- High Cut Input Voltage
- 295 V
- Low Cut Recovery Input Voltage
- 105 V
- High Cut Recovery Input Voltage
- 285 V
Output Features
- Overload
- Automatic Overload Sensing with 5 retries in Normal Mode
- Efficiency
- > 85 %
- Output Power
- 800 W
- Surge Rating
- 2000 VA
- Output Voltage
- User adjustable output (through App), 240 V in High Performance mode, 220 V in Normal mode, 230 V in UPS mode
- AC Output Types
- 5 Pin in 6 A Socket
- Overload Rating
- Up to 200%
- Change Over Time
- 10 ms
- Output Frequency
- 50 Hz +/- 0.5 Hz in Backup mode
- Change Over Voltage
- 95 V in Mains Low, 295 V in Mains High
- Other Output Features
- Special feature for inverter refrigerator compatibility (Accessible through App and Selection Switch)
Battery Features
- Battery Type
- Compatible with Flat Plate, Tubular, SMF and Local batteries
- Recharge Time
- 8-12 hours depending on battery capacity (Charges 30% faster in Turbo Charging Mode)
- Battery Voltage
- 13.6 V
- Battery Capacity
- 12V/ 80-230AH
- Number Of Batteries
- 1
- Replacement Battery
- Yes
- Battery Boost Voltage
- 14 - 14.5 V, Automatically set according to the battery connected
- Other Battery Features
- Battery Deep Discharge Protection, Battery Overcharge Protection, Battery Gravity Builder for Long backup and Life
- Compatible Battery Make
- Compatible with all makes, performs best with V-Guard battery
- Battery Charging Current
- Selectable - 10 A, 15 A & 18 A (Turbo Charging Mode)
- Compatible Battery Types
- Lead Acid Flat Plate battery, Tubular battery, SMF battery, Local battery
- Replacement Battery Type
- Sealed Lead-Acid Battery, Vented/Flooded Lead Acid Battery
Additional Features
- Certification
- BIS Certified Product, UL Certified Components
- Other Features
- Runs Mixer Grinder up to 750 W and Heavy Loads up to 1000 W through the App
- Corrosion Resistant
- Yes
Convenience Features
- Display Type
- Graphical LED
- Cooling System
- Temperature controlled Intelligent Fan Cooling System
- USB Charging Port
- Yes
- Protection Against
- Surge, High and Low Mains, Overload, Short Circuit, Over Temperature
- Emergency Power Off
- Yes
- Other Convenience Features
- Water Topping Reminder, AC Fuse change is not required, User Selectable Output Voltage Settings, Holiday Mode Selection, Buzzer Mute Option
- Audible Indicator Functions
- Battery Water topping Reminder, Overload, Short Circuit, Battery Low, Reset Battery Breaker Trip, Changeover
- Display Indicator Functions
- Battery Water Topping, Mains Mode, Battery Charging, Backup, Overload, Short Circuit, Battery Low
Environmental Features
- Noise Level
- Less than 45 dB at 1 m distance
- Storage Temperature
- 273-323
- Operating Temperature
- 273-318
- Other Environmental Features
- Should be installed in a well-ventilated area
